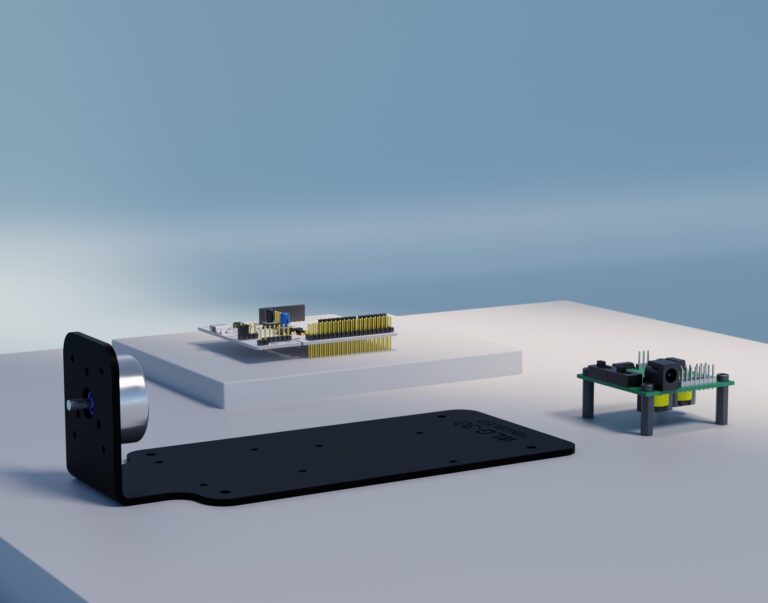

WLG-30-R Motor
Discover the impressive capabilities of Tekceleo’s WLG-30-R ultrasonic motor, a compact and high-performance piezo motor that offers exceptional precision and reliability.
With its miniature size and powerful torque related to its size, this motor is an ideal solution for industrial and medical equipment applications that demand superior performance. Benefit from the advantages of an ultrasonic motor and experience the best in miniature motor technology with the WLG-30-R from Tekceleo.
High Performance
Ultrasonic Motor
The WLG-30-R ultrasonic motor from Tekceleo is an innovative solution that brings motion control to the edge.
With its non-magnetic design and superior performance, this motor is ideal for motion systems that must operate in harsh environments. The WLG-30-R’s piezo motor technology offers exceptional accuracy and precision, making it an ideal choice for high-performance applications. Whether you are developing industrial automation equipment or surgical robots, the WLG-30-R provides the reliability and performance you need to succeed.
Experience the benefits of non-magnetic, high-precision motion control with the WLG-30-R from Tekceleo.
Highlights of our WLG-30-R Ultrasonic Motor
High torque-to-size ratio for compact solutions
Smooth and quiet operation
Customizable design to meet your specific application requirements
Superior accuracy and precision for high performance applications
High durability and long lifespan compared to other USM solutions
Easy to control, with a closed loop on velocity and position
Direct Drive to make engineers live easier
Versatile performances and shape, making it perfect for robotics system
High holding torque, perfect for ernergy efficiency in intermittent operations
Bringing Motion To the Edge
Unique Non-Magnetic
High Torque Actuator
Based on a progressive wave actuator technology coupled with integrated control sensors, Tekceleo’s motors are among the most efficient on the market in terms of torque-to-weight ratio, ease of control in « Direct Drive », combining speed, precision and robustness.
Focus on Innovation
At Tekceleo, we pride ourselves on our engineering expertise and customer support. Our team of experienced engineers is dedicated to helping you find the right solutions for your unique needs.
Whether you have questions about the WLG-30-R ultrasonic motor or need help integrating it into your system, we are here to help. We offer personalized support and guidance throughout the entire process, from selection to implementation.
Contact us today to learn more about the WLG-30-R and how it can improve the performance of your equipment. We look forward to hearing from you and helping you achieve your goals with the best possible motor solution.
Our technology Overview
Piezoelectric Ultrasonic Motors with built-in encoder
Tekceleo’s motors are renowned for their progressive wave actuator technology and integrated control sensors, making them highly efficient in terms of torque-to-weight ratio, and easy to control in “Direct Drive.”
With a wide range of performance capabilities, our WAVELLING® technology allows for nominal speeds ranging from a few RPM to 600 RPM depending on the motor type, without the need for a reducer, ensuring minimal backlash or jerks. Our piezo motors are among the best in class for low speed/high torque ratios, with a unique expertise in very small rotary piezo actuators.
As a pure mechanical actuator, our motors operate without any electromagnetic fields or ferromagnetic materials, making them ideal for use in applications where these materials are not suitable. The rotor is moved by a progressive wave of a vibrating stator with multiple continuous contact points, providing an excellent balance between size, power, and precision.
TEKCELEO offers the following actuators, all of which allow non-magnetic configurations for MRI environments:
WLG-75-R, 75 mm diameter motor
WLG-30-R, 30 mm diameter motor
WLG-20-R, 20 mm diameter motor
Technical Characteristics
Mechanical
Performances
WLG-75-R has one of the best nominal performances of USM in the market
Max Speed : 250 RPM
Nominal Speed : 165 RPM
Rated Power : 1,3 W
Max Torque : 100 mN.m
Holding Torque : 125 mN.m
Precision
Accuracy
High accuracy and stability directly achievable with the built-in encoder
Built-in encoder, optical with quadrature output
Max encoder resolution: 0,0450°/789 µr
Custom max encoder resolution : 0,0104°/181µr
Rate stability : +/- 0,01%
Operating
Characteristics
Compact and versatile motor for uses in most environment.
Operating Voltage : 7,5 VDC
Maximal Power Consumption: 7,5 VDC/1,35 A
Weight : 38 g
Operating temperature : 0°C - 45°C
Electronic
Controller
Closed loop control on position and speed. Very good latency for positioning.
Control method : closed loop on velocity and position
Start/Stop latency : <500 µs
Speed Change latency : <50 ms
Speed Setting External Voltage : DC 0[V] 〜 3.3[V]
